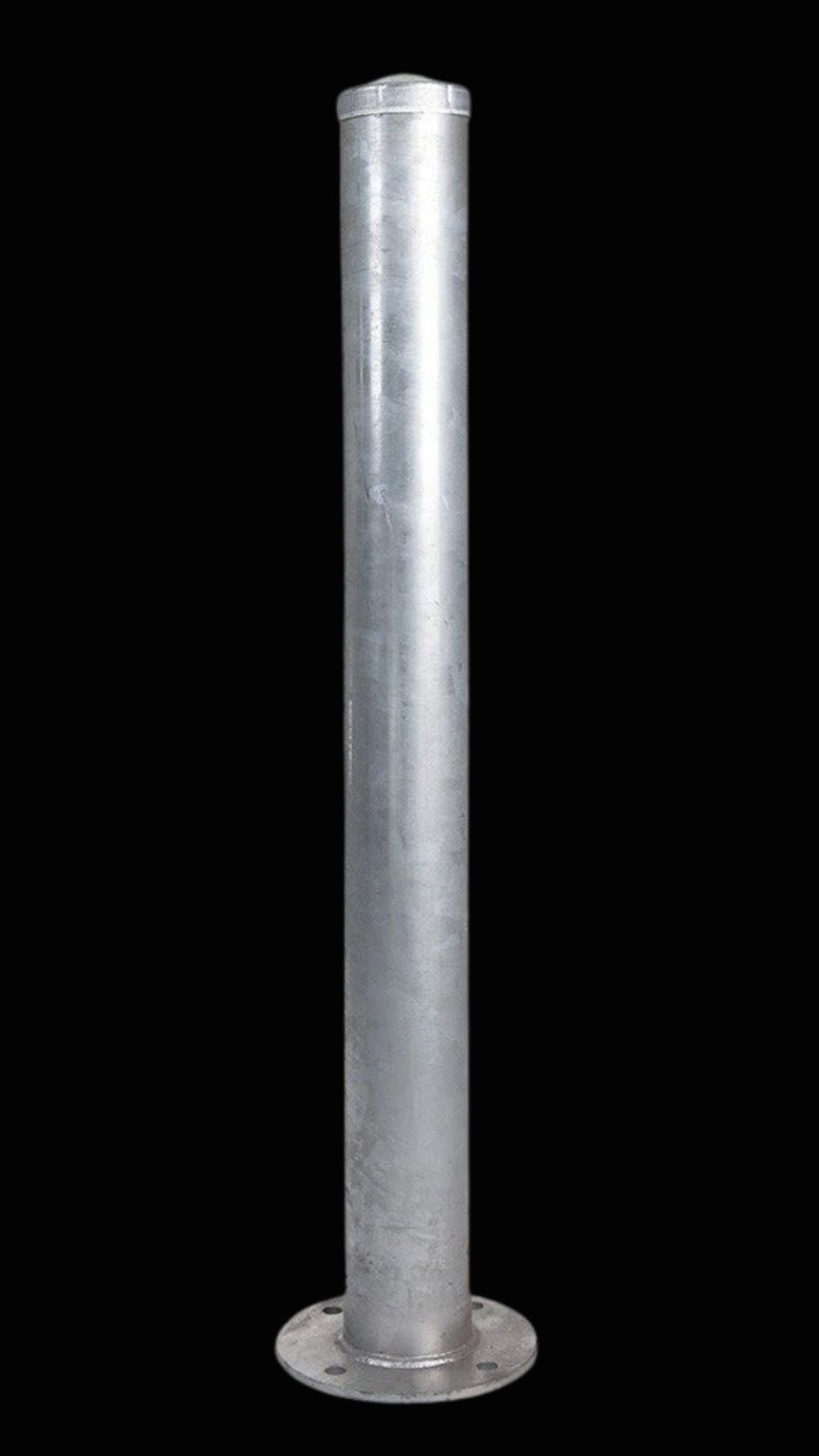

114 MM/OD Galvanised Surface Mounted Bollard

Our new TKO Bollards are manufactured from top quality steel and are designed to be used in a variety of applications within shopping centers, car parks and facilities which require pedestrian and asset protection while meeting architectural requirements.
TKO Bollards are produced by Kennedy Welding, meaning all our Bollards are made to Australian Standards and with Quality Steel, which provides a longer lasting product.

TKO Bollard four bolt surface mount bollards provide a time efficient and cost effective solution for installation with no core drilling or concreting required.

 Designed for

• Shopping Centers, Car Parks and property protection.
• Cafes, Commercial Car Parks, Pallet Racking & more - If you are unsure what type of bollard you need, please call us on 1300 258 456 or Contact Us
• Manufactured from top grade steel, in Brisbane Australia.
• All Prices Exclude GST - Shipping may vary depending on your location.



SPECS & SIZES

Height: 1130mm

Diameter: 114mm

Base Plate Diameter: 234mm 4xm16 Dyna Bolts

Finish: Hot dip Galvanized

Wall Thickness: 4.5mm

Model: 114-ODSF-Galv

ADDITIONAL INFORMATION

Weight	17.4 KG
Dimensions	1130x114x220mm



114mm Bolt Down / Surface Mounted Bollard
Model No: BSMG114
Diameter: 114mm
Height: 1130mm
Wall Thickness: 4.5mm
Baseplate: 210mm 4x Fixing Holes - Please advise if you need Dynabolts (m16)
Finish: Hot Dip Galvanised



Additional options if required:
Optional eyelets for chain
Removable cap for concrete filling
Stainless Steel, Galvanized, Powder Coated or any custom colours.
Plain hot-dip galvanised finish
Height and diameter to suit
